Domino Cx-Series outer case printing systems deliver high-resolution, large character coding directly onto boxes, cartons, and construction materials.
Products / Outer Case Printing Systems
Outer Case Printing Systems
Domino Cx-Series outer case printing systems deliver high-resolution, large character coding directly onto boxes, cartons, and construction materials.
Products / Outer Case Printing Systems
See the Cx Series in Action

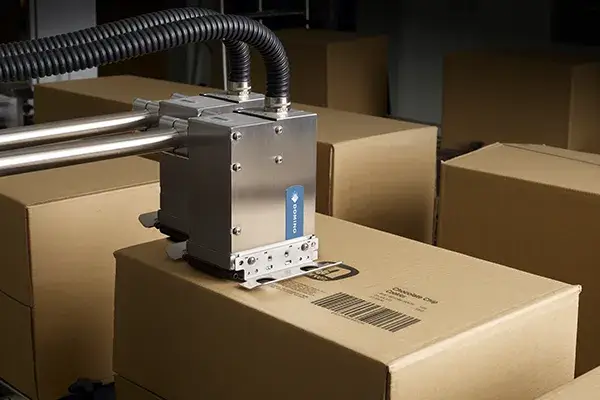

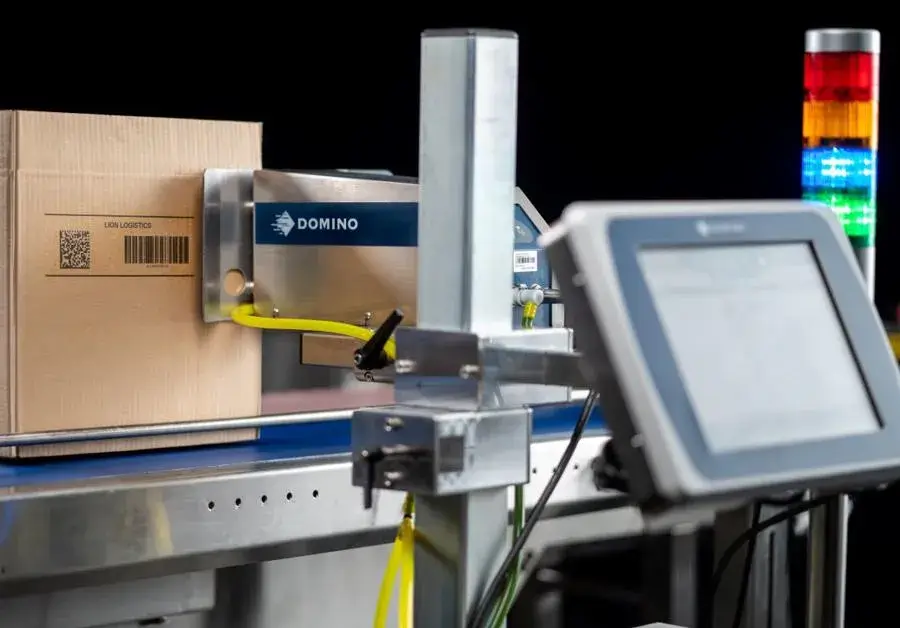

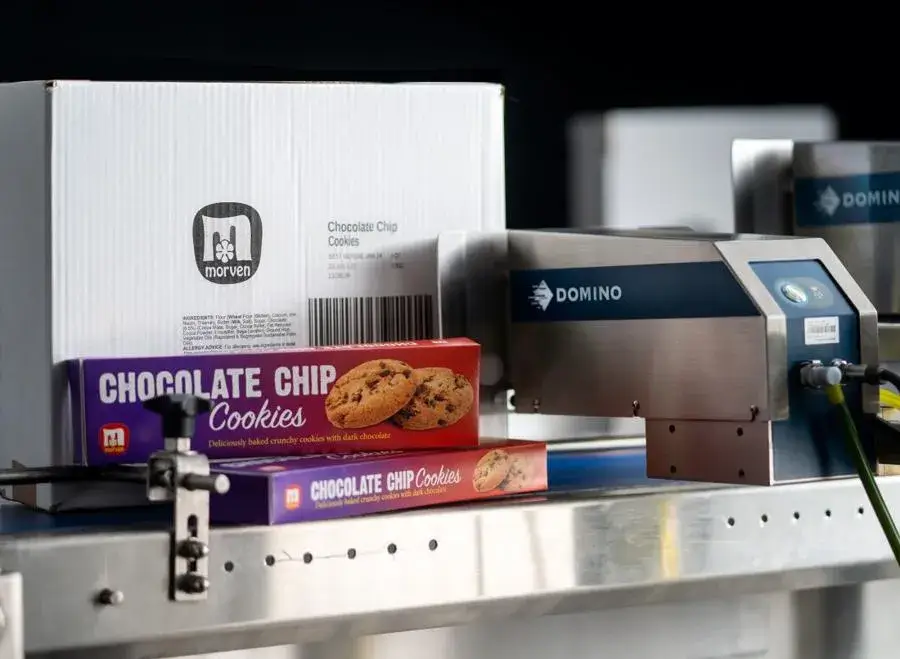

Watch how Domino Cx-Series printers deliver high-resolution, large-area coding on boxes and packaging during live production. These systems print clear text, barcodes, and 2D codes directly onto outer cases while maintaining reliable performance across fast-moving production lines.
Domino Outer Case Printing Cx Range

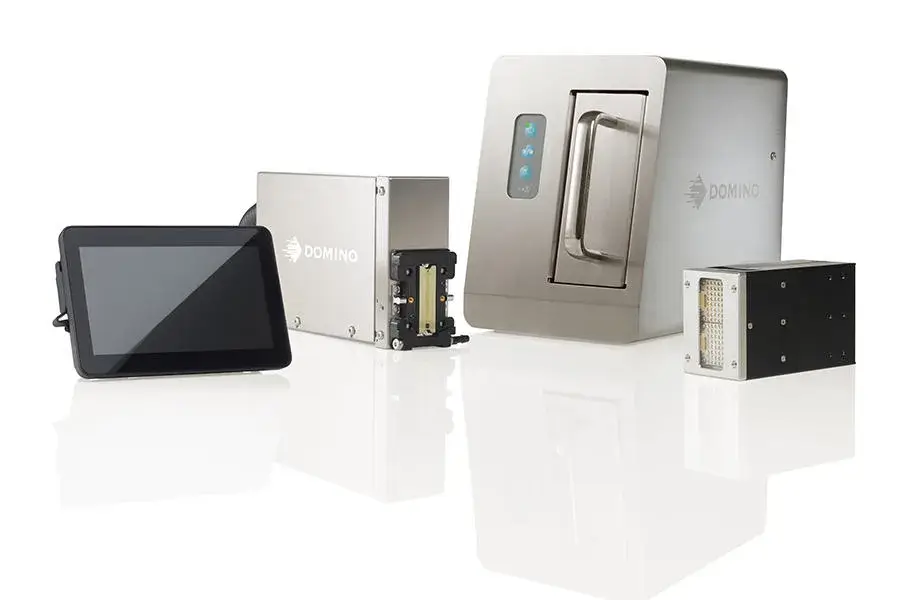

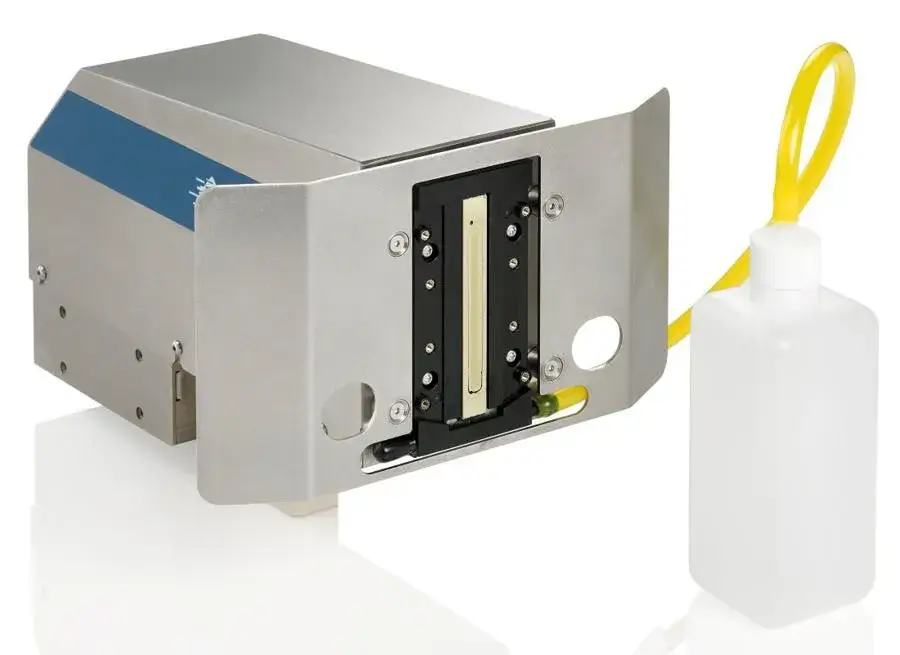

Explore the Domino Cx-Series outer case printing systems, designed for high-resolution, large-character coding on both porous and non-porous substrates.
Compare Cx-Series Outer Case Printing Systems
Find the right Outer Case Printing System based on your production environment, complexity and performance requirements.

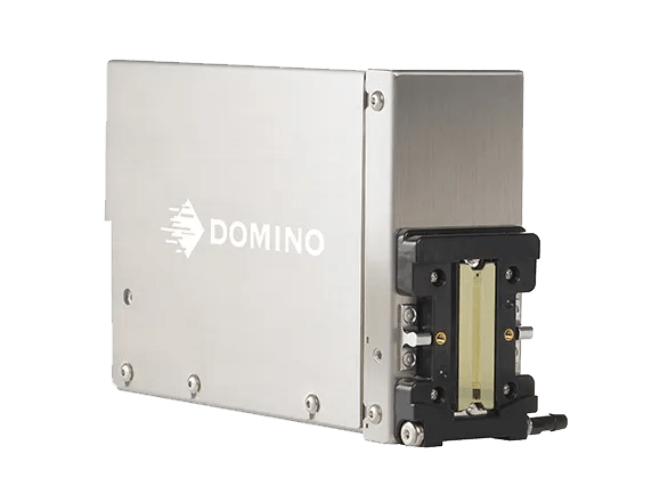

| Feature comparison | Cx150i | Cx350i |
|---|---|---|
| High-resolution, non-contact, piezo inkjet printing | ✔ | ✔ |
| Text, barcodes and graphics coding | ✔ | ✔ |
| Service-free | ✔ | ✔ |
| Available ink choices | Black, UV-cure ink for varnished boxes and general-purpose, non-porous & porous substrates. Food packaging compliant ink available. | Black, blue, red and green vegetable oil-based inks for porous substrates. Food packaging compliant. |
| Print height per printhead | 32.5mm or 65mm | 65mm |
| Max. number of printheads | 1 | 4 |
| Max. print height (with stitching) | 32.5mm or 65mm | 260mm |
| Print resolution | up to 600dpi | up to 300dpi |
| Distance to bottom nozzle | Cx1-PH 32 A: 23.3mm Cx1-PH 65 A: 32.7mm | 36.5mm |

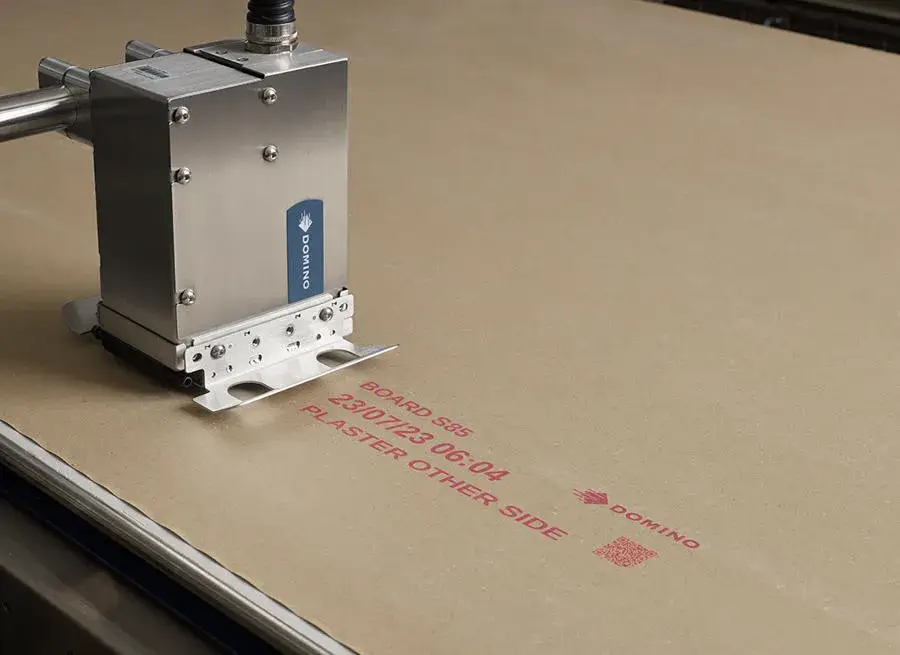

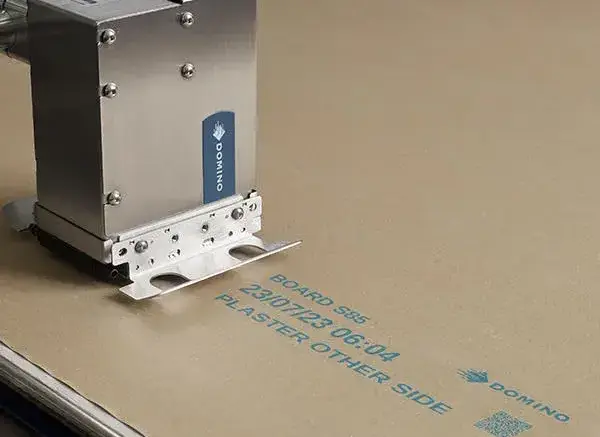

| Substrate | Non-porous and porous substrates | Standard: Porous, uncoated boxes, corrugate and paper Industrial: Porous building materials, including plasterboard/drywall |
| User interface | 7” or 10” touchscreen interface | 7” or 10” touchscreen interface |
| Software | QuickStep 3 | QuickStep 3 |
| Dimensions (Inkbase) | 276mm (H) x 167mm (W) x 231mm (D) | 490mm (H) x 330mm (W) x 234mm (D) |
| Dimensions (Printhead) | Cx1-PH 32 A: 136.4mm (H) x 61mm (W) x 222.6mm (D) Cx1-PH 65 A: 136.4mm (H) x 61mm (W) x 233.8mm (D) | 190mm (H) x 113mm (W) x 312mm (D) (standard head) |
Common Outer Case Printing Applications

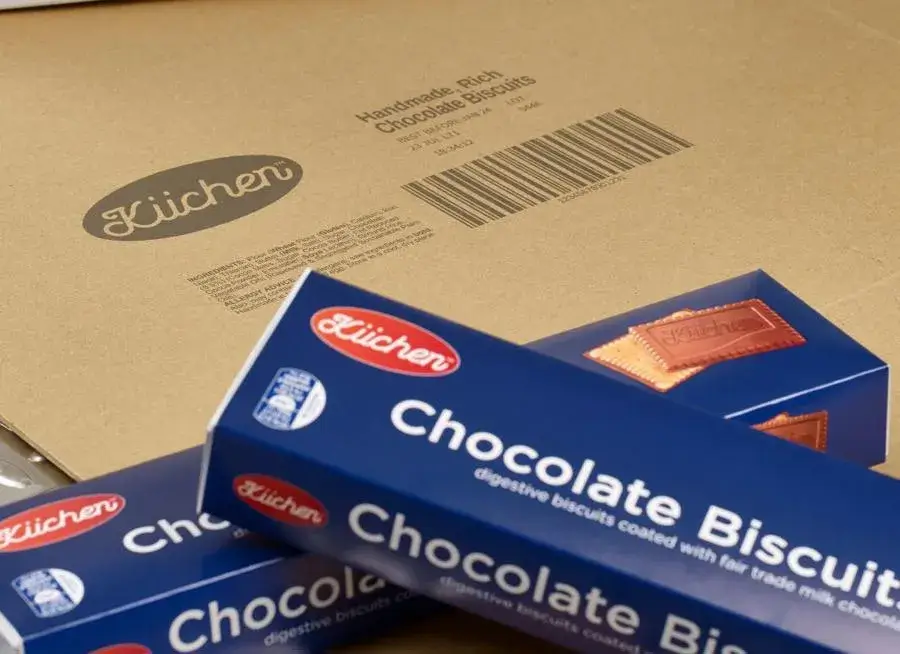

Outer case printing systems are designed for high-resolution, large character coding directly onto packaging and industrial materials. They eliminate the need for labels by printing directly onto boxes, cartons, and substrates used across modern production and logistics environments.

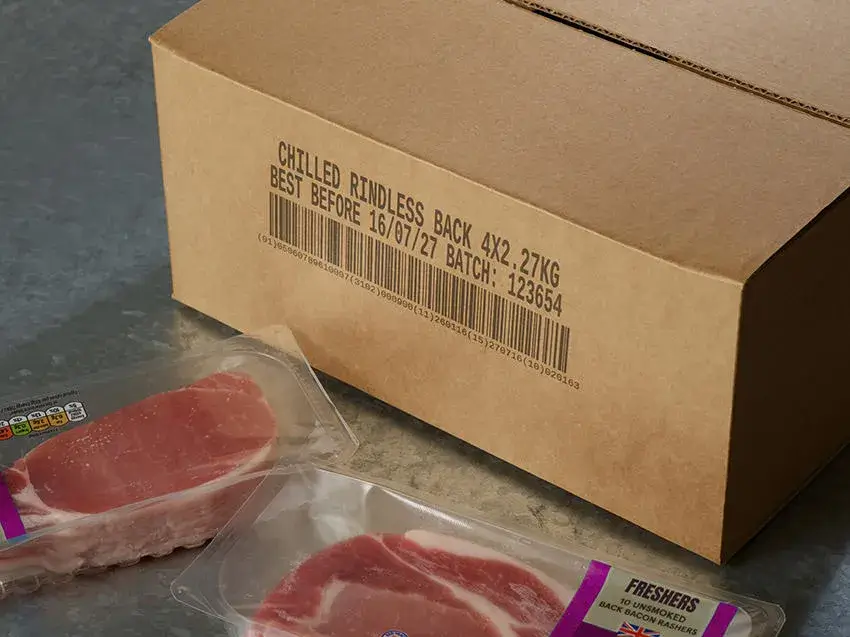

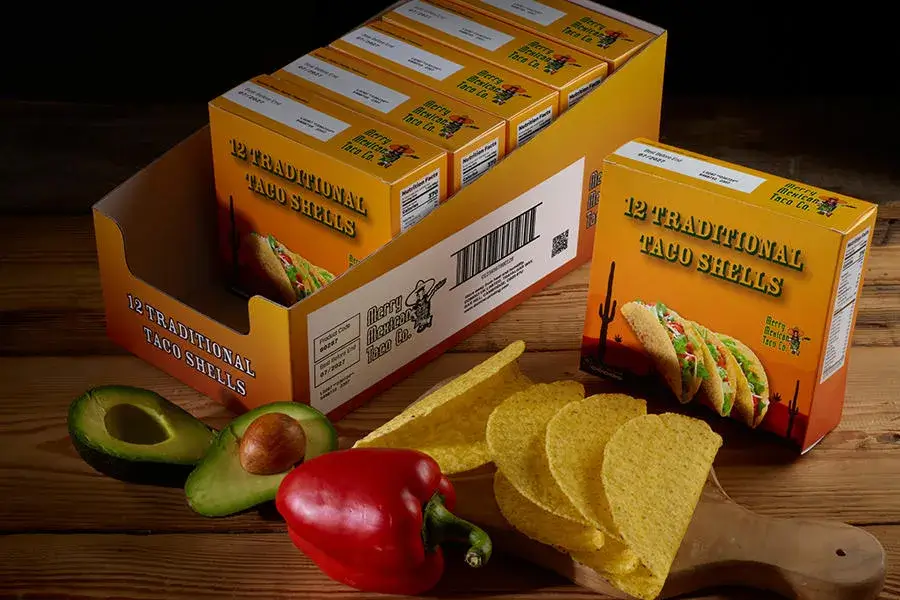

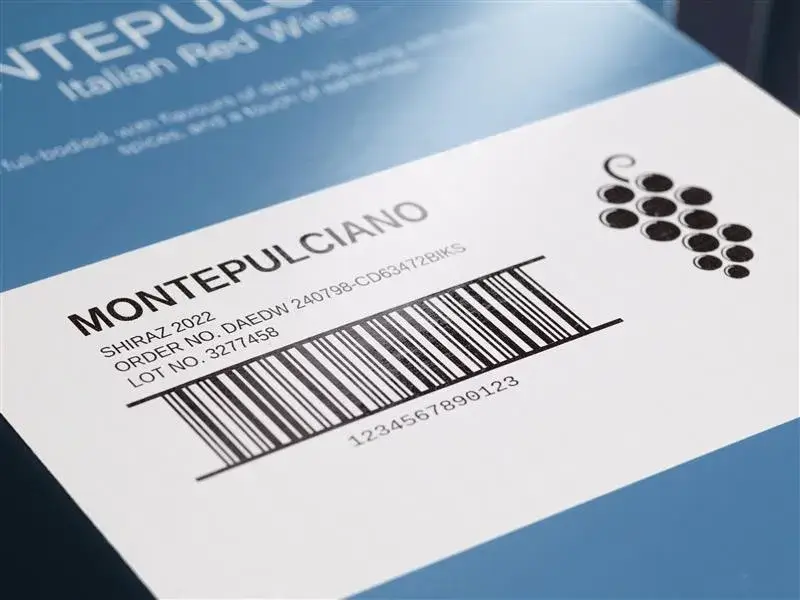

These systems are commonly used to print product information, barcodes, logistics data, and 2D codes on corrugated boxes, cartons, paper-based packaging, and construction materials. They support traceability, compliance, and efficient supply chain operations while reducing waste and labelling costs.
