Why use a Thermal Transfer Overprinter?
Our selection of Thermal Transfer Overprinters (TTO printers) is designed to produce variable data, barcodes, and high-quality 300dpi images on flexible packaging films and labels. These printers are ideal for a wide range of manufacturing and packaging applications, spanning the food, pharmaceutical, and industrial sectors.
Thermal Transfer Overprinter (TTO printer) technology is a well-established method for coding on flexible packaging. However, with enhanced capabilities and technological advancements that have made it more cost-effective, it is now gaining widespread recognition as a replacement for older non-digital technologies, such as hot stamp and roller coders.
Our customers include some of the biggest names in global manufacturing in such sectors as Pharmaceuticals, Medical Devices, Food, Beverage, Dairy, Construction Materials, and Aerospace among others.
Why Choose The Domino Vx-Series Thermal Transfer Overprinting System?
Domino’s Vx-Series Thermal Transfer Overprinters (TTO printers) provide the capability to print real-time and variable data, machine-readable codes, texts, graphics, and logos on flexible packaging, films, and labels. These printers can be seamlessly integrated into various packaging and processing equipment, such as labellers, tray sealers, flow wrappers, VFFS, HFFS, and baggers. The Vx-Series serves as your answer to meeting traceability and anti-counterfeiting requirements. Engineered for sharp and legible coding, the Vx-Series achieves high resolutions at rapid speeds.
Thermal Transfer Overprinting presents a cost-effective solution, and with a strong commitment to simplifying the day-to-day tasks of operators, Domino’s TTO printer equipment is designed to minimize downtime and optimize throughput.
FEATURE COMPARISON | Vx50i The simplicity of printing on flexibles | Vx150i-32mm Coding on flexible packaging has never been easier | Vx150i-53mm High-quality and High-speed printing on flexibles and labels |
---|---|---|---|
Printhead width | 32mm | 32mm | 53mm |
Print Area(IM) | 32x55mm | 32x75mm | 53x75mm |
Print Area(CM) | 32x55mm | 32x100mm | 53x100mm |
Code print quality | 300dpi | 300dpi | 300dpi |
Maximum Print Speed (IM) | Up to 400mm/sec | Up to 600mm/sec | Up to 600mm/sec |
Maximum Print Speed (CM) | 10 to 680 mm/sec | 10 to 750 mm/sec | 10 to 750 mm/sec |
Maximum repeat rate | 4 prints/sec | 6 prints /sec | 6 prints/sec |
Ribbon Saving Modes (IM) | Economy, Retraction, Column | Economy, Retraction, Column | Economy, Retraction, Column |
Ribbon Saving Modes (CM) | Economy, Retraction, Column, Stop-mid print | Economy, Retraction, Column, Stop-mid print | Economy, Retraction, Column, Stop-mid print |
Supported code formats | EAN, GS1, UCC, QR code, Data Matrix, Han Xin, ITF, Code128, text, graphics, 1D, 2D codes etc. | EAN, GS1, UCC, QR code, Data Matrix, Han Xin, ITF, Code128, text, graphics, 1D, 2D codes etc. | EAN, GS1, UCC, QR code, Data Matrix, Han Xin, ITF, Code128, text, graphics, 1D, 2D codes etc. |
Compressed air required | Not required | Not required | Not required |
Cassette ribon loading | ✔️ | ✔️ | ✔️ |
QuickStep – simple user interface | ✔️ | ✔️ | ✔️ |
PC label design software included | ✔️ | ✔️ | ✔️ |
Performance packs (optional) | Not Applicable | Dynamark Serialisation | Dynamark Serialisation |
Optional interface | TouchPad; 7inch touchscreen | TouchPad; 7inch touchscreen | TouchPad; 7inch touchscreen |
The V-Series range encompasses three models (V120i, V230i, and V320i) to address your specific coding requirements. However, in comparison to alternative TTO printer solutions, all of these models offer significant reductions in the Total Cost of Ownership (TCO). These reductions are achieved through minimised downtime, reduced consumable usage, operational ease, and enhanced coding capabilities.
This additional value is delivered through i-Tech, Domino’s intelligent Technology, which has been honed over two decades of Thermal Transfer Overprinter (TTO printer) experience. It has resulted in unique innovations like our i-TechRibbon Drive and our top-tier QuickStep user interface.
These advantages, coupled with versatility and straightforward installation, make the V-Series the ideal choice, whether you are a manufacturer or a packaging machinery OEM.
Key Benefits
Thermal Transfer Overprinters (TTO printers) excel at printing variable text (in any legible true type font), graphics, barcodes, and 2D codes on packaging films, foils, and labels, enabling specific pack identification and decoration. They offer a wide array of additional benefits:
- Lowest Total Cost of Ownership – Achieved through i-Tech features that reduce ribbon consumption and minimise downtime.
- Simple, Error-Free Operation – Thanks to QuickStep, Domino’s leading-edge user interface.
- Simple Integration – Enables swift and efficient installation or replacement of existing TTO coders.
- Versatile Performance – Tailored to perfectly match your application needs.
See why Irwin’s Bakery of Portadown chose Domino V230i TTO printers.

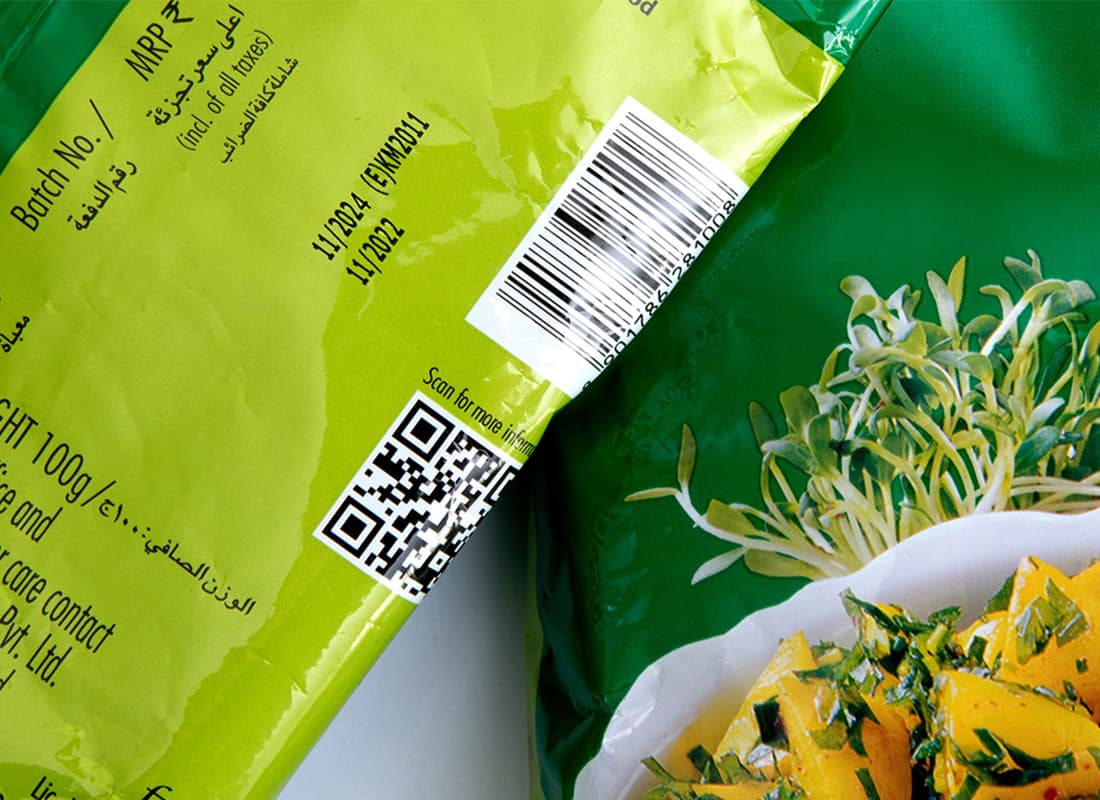

TTO Image Gallery
Domino and Intrex Collaborate to Offer Aspen, a Pharmaceutical Manufacturer, an Integrated Solution for Coding
This case study from Domino Printing showcases Aspen’s adoption of both Domino’s UV laser and Thermal Transfer Overprinting (TTO) systems, illustrating their combined impact on product marking. It highlights substantial improvements in efficiency, quality, and cost-effectiveness within marking processes. For manufacturing professionals seeking insights into innovative technology solutions, this study offers practical examples of how Aspen has integrated UV laser and TTO systems to revolutionize production operations. Download the case study to explore Aspen’s successful implementation of Domino’s UV laser and TTO technologies.
